File:Gateway diagram.svg
Original file (SVG file, nominally 1,071 × 761 pixels, file size: 195 KB)

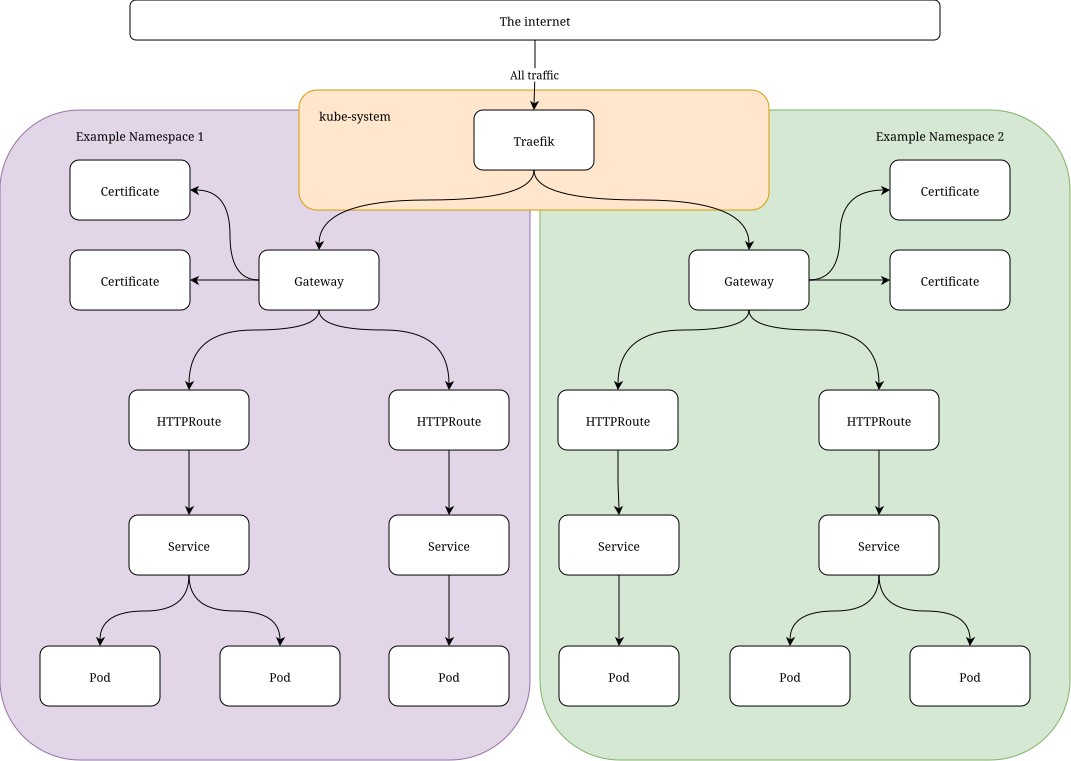

A digram depicting the the flow of traffic from the internet, to traefik then to each namespace's gateway. Each gateway then looks at all connected certificates to add TLS authentication and then looks at the HTTPRoute to find which one matches based on the rules which then defines what service to forward the traffic to and subsequently the pods.
